What Features Matter in a Swim Machine?

When comparing swim machines, start with the current, not the motor.

Current velocity describes how fast the water moves through the swimming zone. Flow rate describes how much water the system moves. Motor power describes the equipment used to generate that flow. These specifications are related, but they measure different aspects of performance.

A high flow-rate figure does not automatically mean a better swimming experience. Outlet design, current width, turbulence, swimmer position and speed control can all affect how the current feels.

For most pool owners, the specifications worth comparing are current velocity, adjustable range, current consistency, flow rate, pool compatibility, installation, controls, electrical requirements and maintenance.

Swim Machine Features at a Glance

No single specification describes the performance of a swim machine. The useful comparison comes from understanding how these characteristics work together.

1. Current Velocity

Current velocity is one of the most relevant specifications because it describes the speed of the water moving toward the swimmer.

As a practical reference:

These are practical comparison ranges, not formal swimming standards. The resistance experienced by an individual swimmer also depends on stroke, body position, technique and current design.

Current Velocity Is Not Swimming Pace

Current velocity should not be interpreted as the swimmer's actual swimming speed.

For example, 1.0 m/s corresponds mathematically to approximately 1:40 per 100 m in still water. A swimmer using a counter-current system, however, remains relatively stationary while water moves toward them. Drag, stroke technique and body position determine the resulting workload.

A machine with a maximum current of 3.5 m/s therefore does not mean that every swimmer can sustain a 3.5 m/s swimming pace.

The more useful consideration is whether the machine provides enough adjustable resistance for the swimmer's training needs.

Example: iGarden Swim Jet X Series

The iGarden Swim Jet X Series provides a maximum current velocity of approximately 3.5 m/s, with flow of up to 1,100 GPM / 250 m³/h.

The practical value of that output is the available resistance range. A swimmer can use lower settings for warm-up or technique work and increase the current for endurance or interval training.

2. Flow Rate: GPM and m³/h

Flow rate is normally expressed as GPM (gallons per minute) or m³/h (cubic metres per hour).

For US gallons:

1 US GPM ≈ 0.227 m³/h

Common conversions include:

Flow rate tells you how much water the system moves, but it does not fully describe the current experienced by the swimmer.

Two systems with similar GPM ratings can produce different swimming conditions because water can be delivered through different outlet designs and flow patterns.

Relevant factors include:

• Outlet or nozzle design

• Current width

• Flow direction

• Water velocity

• Turbulence

• Distance between outlet and swimmer

• Swimmer position within the current

For that reason, GPM is best evaluated alongside current velocity and current design.

X Series and P Series

The iGarden Swim Jet X Series is rated at up to 1,100 GPM / 250 m³/h, while the P Series reaches approximately 1,100 GPM / 240 m³/h, depending on model specification.

The similar headline flow figures do not make the two systems identical. The X Series is a portable system, while the P Series is designed for fixed AC installation, with different current and operating characteristics.

The important point is that flow rate should be treated as one part of the performance specification rather than a standalone measure of swimming quality.

3. Current Consistency and the Usable Swimming Zone

Maximum output tells you what a swim machine can produce. It does not necessarily tell you how evenly that current is delivered.

For continuous swimming, the swimmer needs a usable area with reasonably stable resistance. A narrow or highly turbulent current can create noticeable changes in resistance as the swimmer changes position.

When assessing current consistency, look at:

• Current width: How much of the swimmer's body is inside the main flow?

• Turbulence: Is the water reasonably stable or excessively disturbed?

• Swimming position: Can the swimmer maintain position comfortably?

• Flow distribution: Does the current reach the torso and legs rather than forming a narrow stream?

• Low-speed behaviour: Does the system remain controllable when resistance is reduced?

There is no single industry-wide numerical standard for current uniformity. For practical comparison, the important question is whether the machine creates a stable and usable swimming zone.

This is also why two machines with similar GPM ratings can feel different in actual use.

4. Adjustable Speed and Training Control

A swim machine needs to cover more than one intensity if it is going to support regular training.

A typical session may include:

1. Warm-up

2. Technique or drill work

3. Steady endurance swimming

4. Higher-intensity intervals

5. Cooldown

When comparing speed control, check:

• Number of speed levels

• Size of the adjustment between levels

• Consistency at different settings

• Ease of changing intensity

• Preset modes or training programs, where available

A high maximum speed is useful only if the swimmer can access the lower and middle portions of the range comfortably.

For regular training, the usable adjustment range can be more important than the maximum setting alone.

5. Use Your Swimming Pace as a Training Baseline

Your normal 100 m pace can help establish how much resistance you need, but it should not be converted directly into a required swim-machine speed.

For example, a 1:30/100 m pace corresponds mathematically to about 1.11 m/s in still water. That figure does not mean a counter-current set to 1.11 m/s will create exactly the same workload.

Instead, use your normal pace as a training baseline.

If you normally train at several different intensities, choose a machine that gives you enough adjustment to reproduce those changes in effort. This is particularly important for swimmers who combine aerobic work, endurance sessions and short intervals.

The machine should provide room to increase resistance as fitness improves rather than forcing you to operate close to maximum output during normal training.

6. Installation and Pool Compatibility

Installation type can be just as important as performance specifications.

Portable Swim Machines

Portable systems are designed to minimise permanent pool modification.

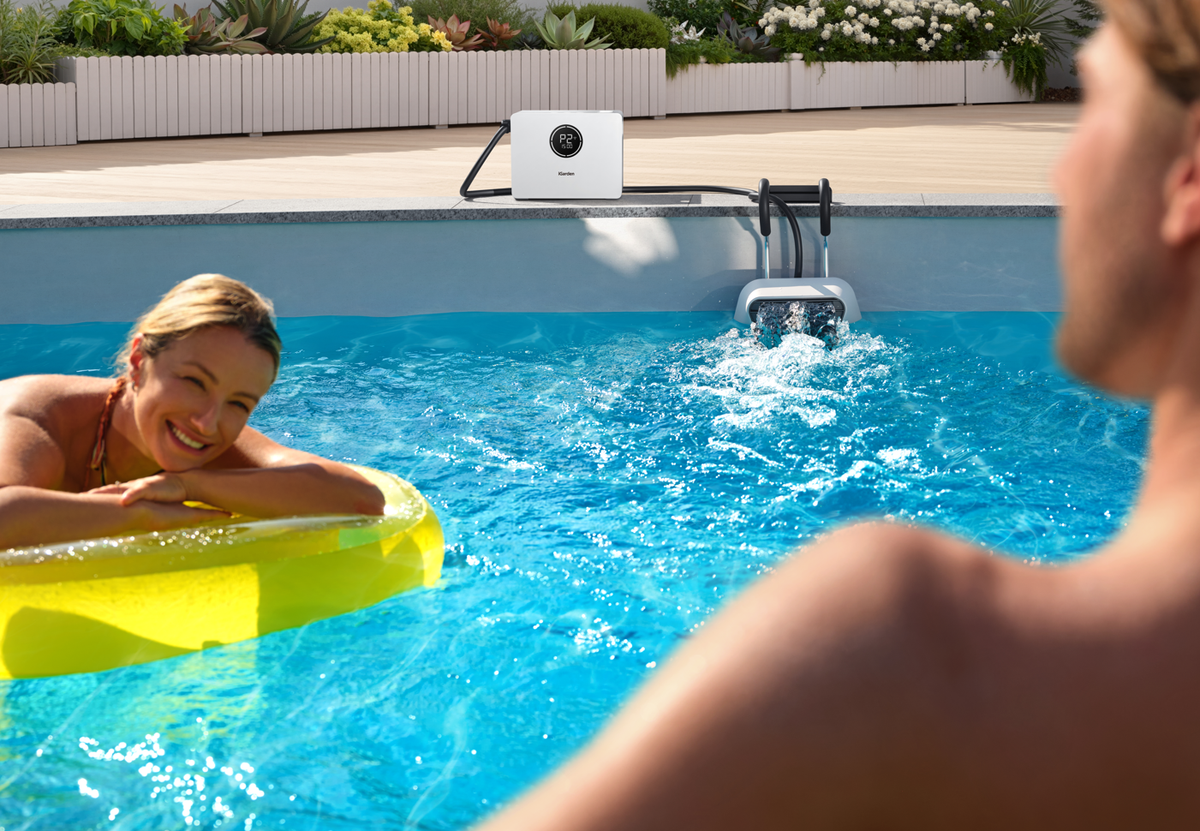

The iGarden Swim Jet X Series is a portable clamp-on swim jet designed without drilling, permanent plumbing or permanent wiring.

This type of system can suit:

• Existing pools

• Pools where structural modification is undesirable

• Seasonal use

• Users who want to remove or store the equipment

• Pool owners who do not want a permanent counter-current installation

Portable does not mean installation position is unimportant. The mounting system still needs to be secure and compatible with the pool edge.

iGarden Portable Swim Jet X

Best-in-Class Water Flow: AI Inverter Tech delivers the strongest water flow in its class. 1-Min Setup: No drilling, no renovation. Clamp the jet and go. All in One: Training, playing, relaxing, experience the freedom of unlimited swimming.

Buy Now

Fixed Swim Machines

Fixed systems are designed to remain integrated with the pool.

The iGarden P Series is a fixed AC-powered swim jet intended for a dedicated installation. This approach can suit pool owners planning a permanent counter-current system.

The trade-off is that fixed installation generally requires more planning and may involve electrical or structural work.

	Portable	Fixed
Permanent modification	Lower	Higher
Installation flexibility	Higher	Lower
Removal/storage	Possible	Generally not intended
Electrical requirements	Model-specific	Dedicated installation may be required
Best suited to	Existing or flexible setups	Permanent installations

Check the Actual Pool Geometry

Pool length alone is not enough to establish compatibility.

Before purchasing, check:

• Pool depth

• Pool width

• Pool shape

• Wall construction

• Coping design

• Water level

• Mounting location

• Available electrical supply

• Distance between the outlet and swimming position

There is no universal minimum pool depth for every swim machine. Requirements depend on the equipment design, mounting position, outlet location and manufacturer's installation instructions.

For portable systems, the pool edge and coping must be compatible with the mounting mechanism. For fixed systems, the installation location should be established before construction or renovation is completed.

7. Electrical Requirements

Electrical requirements are model-specific and should not be assumed from another swim machine.

Depending on the system, requirements may include different:

• Voltage

• Current

• Phase

• Circuit capacity

• Isolation

• RCD/GFCI protection

• Cable arrangements

• Professional installation

For Australian installations, the manufacturer's requirements should be considered alongside applicable local electrical and pool-equipment requirements.

The X Series and P Series use different installation approaches, so their electrical requirements need to be assessed separately.

For a fixed system, electrical planning should be completed before installation rather than treated as a final-stage detail.

8. Controls and Motor Design

Controls

Controls become particularly important when a swim machine is used for structured workouts.

Useful control options can include:

• Physical controls

• Remote control

• Touchscreen controls

• Mobile app control

• Preset modes

• Fine speed adjustment

• Timed sessions

The iGarden X Series combines physical controls with app-based control. The P Series provides five operating modes.

The practical test is straightforward:

Can you change the intensity easily without disrupting your workout?

Motor Design

Motor power is useful technical information, but it should not be treated as a direct measure of swimming performance.

The motor and drive system determine how the equipment generates and controls water movement. For the swimmer, the important result is whether the system can produce the required current consistently across its operating range.

When comparing motor systems, consider:

• Speed-control range

• Output consistency

• Efficiency

• Heat management

• Operating noise

• Durability

• Serviceability

The iGarden X Series uses an AI Inverter system for adjustable current output. The relevant consideration is how that technology translates into controllable and consistent current during actual use.

9. Maintenance and Warranty

A swim machine is a mechanical and electrical system, so ownership continues after installation.

Before purchasing, check:

• Cleaning requirements

• Access to serviceable components

• Replaceable wear parts

• Motor or pump service support

• Replacement-part availability

• Warranty terms

The iGarden Swim Jet range includes a 3-year replacement warranty.

Warranty length is only one consideration. Check which components are covered, what conditions apply and how replacement or service is handled.

For a machine used several times per week, serviceability and parts support can have a greater practical impact than a small difference in headline output.

Matching Features to Your Training

Different types of training place different demands on a swim machine.

Training Goal	Features to Prioritize
Beginner or recovery	Low-speed control and smooth, manageable current
General fitness	Adjustable speed and stable current
Endurance training	Strong output and broad usable range
Interval training	Fast adjustment and multiple operating levels
High-intensity resistance work	High maximum velocity and strong output capacity

These are not fixed swimmer categories. One swimmer may use several settings during the same workout.

The objective is to choose a system with enough range, stability and control for the sessions you actually perform.

The Practical Way to Evaluate a Swim Machine

The most useful swim-machine comparison starts with the current experienced by the swimmer, then works outward to the equipment that produces it.

Current velocity tells you about available resistance. Adjustable speed determines how precisely that resistance can be controlled. Current consistency affects the usable swimming zone, while flow rate provides additional information about the volume of water being moved.

After those performance factors, consider the practical requirements: pool compatibility, installation method, electrical supply, controls, maintenance and warranty.

For example, the iGarden Swim Jet X Series and P Series have similar headline flow figures but use different installation and operating approaches. That difference illustrates why a single specification cannot describe the complete swimming experience.

Rather than choosing a swim machine solely by its highest GPM or motor rating, compare the current strength, usable adjustment range, current consistency and practical installation requirements against the way you actually intend to train.
